Polishing Machines
Vacuum Polishing Systems — Single & Double Station
High‑efficiency vacuum polishing machines for jewelry finishing. Strong suction, clean work zones, and ergonomic operation for single or dual operators.

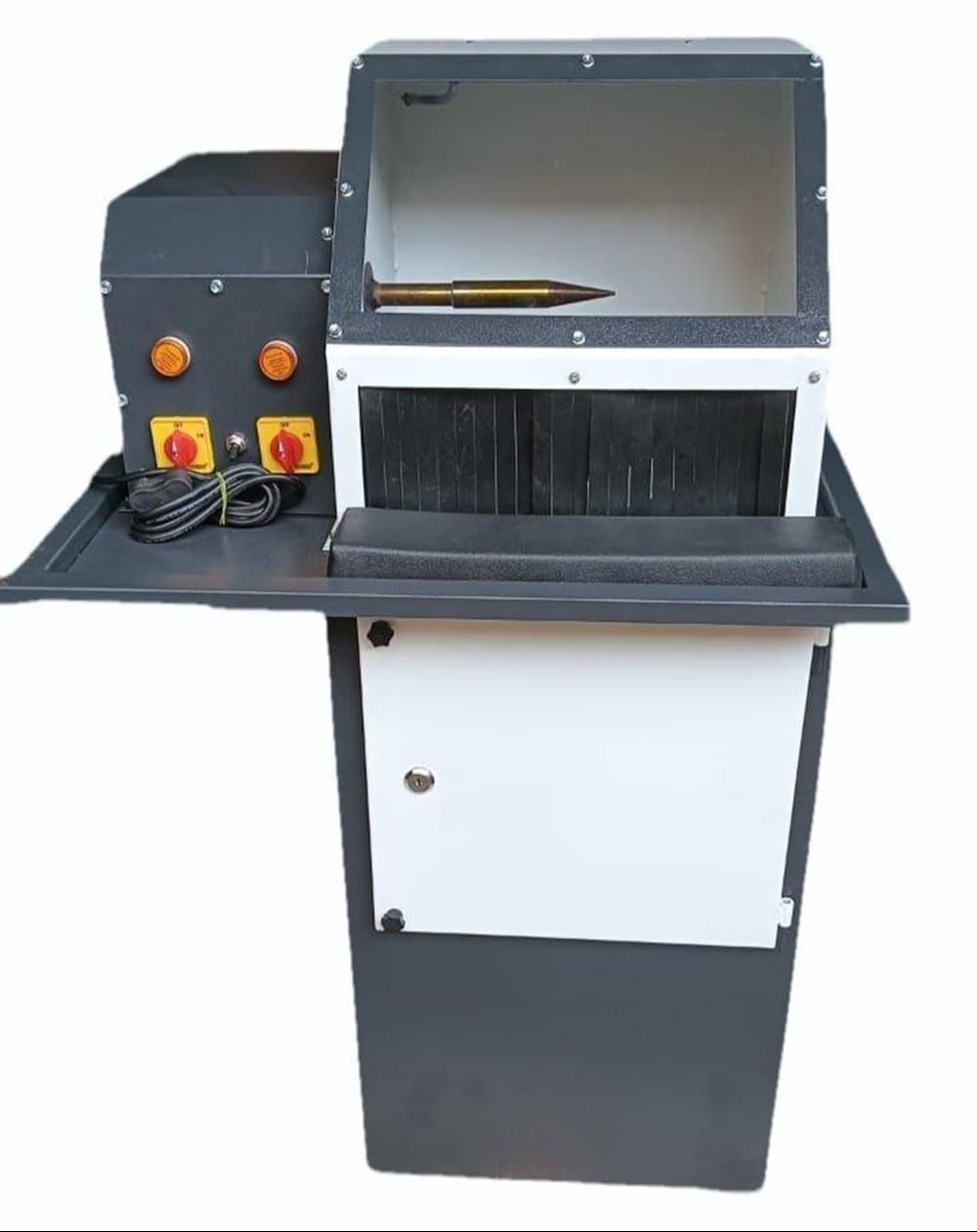

Vacuum Polishing Machine — Single Station
Compact, efficient single‑operator unit with strong suction and smooth grinding motor for precise finishing.
Technical Specification
- Power Supply: 230 V AC, Single Phase
- Power Consumption: 1.3 kW
- Vacuum Suction: 250 CFM, 1 HP, 2800 RPM
- Grinding Motor: 0.75 HP
- Dimension: 24" × 28" × 50"

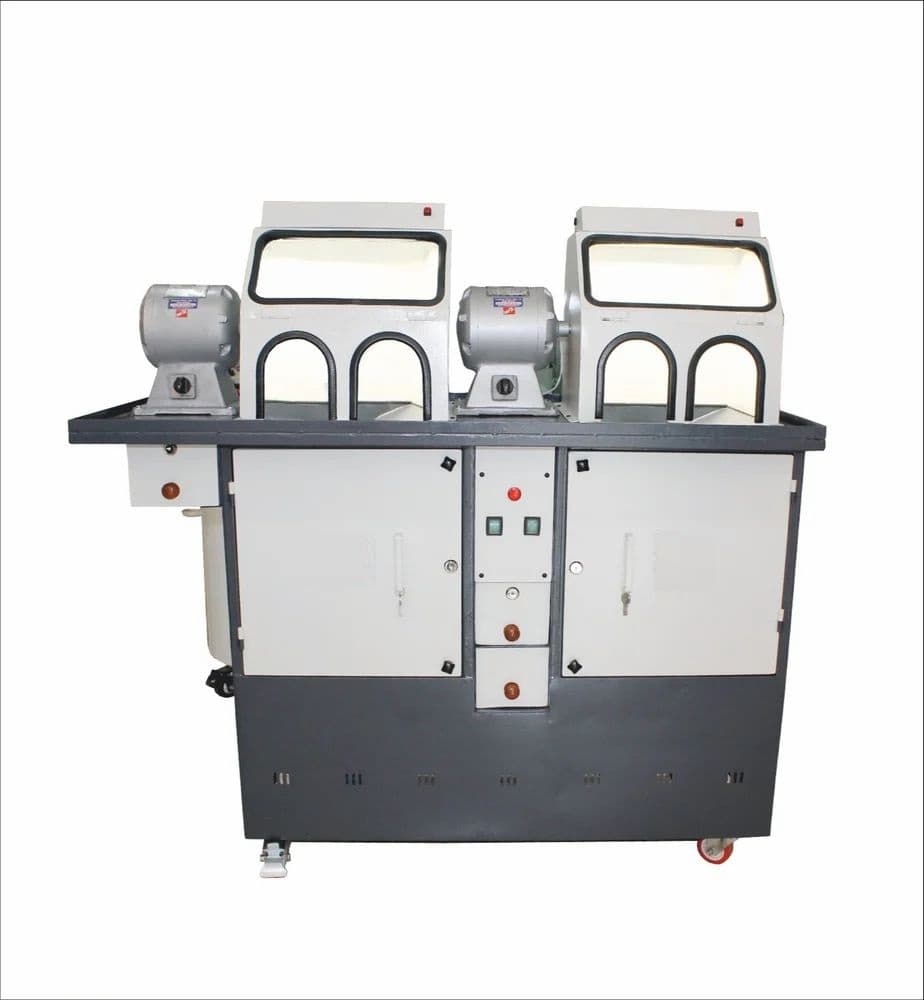

Vacuum Polishing Machine — Double Station
Two‑operator polishing workstation with powerful suction, multi‑stage filtration, and noise‑reduction features.
Specification
- Power Supply: 230 V AC, Single Phase
- Power Consumption: 2.5 kW
- Vacuum Suction: 2500 CFM, 1 HP, 2800 RPM
- Operating Person: Double
- Dimension: 53.5" × 23" × 52"
- Grinding Motor: 0.75 HP
- Weight: 200 kg (Approx.)
Key Features
- Locking Facility
- Pocket Cloth 10 Micron
- Silencer for Noise Reduction
- High-Speed Suction Motor
- Multi-Filter Capacity
Vacuum Polishing Machine — Single Station
| Parameter | Value |
|---|---|
| Model | Vacuum Single Station Polishing Machine |
| Power Type | Electric |
| Power | 230 V AC |
| Brand | JewelTech |
| Weight | 70 kg (Approx.) |
| Voltage | 230 V AC, Single Phase |
| Warranty | 1 year from invoice date, Ex-Factory |
| Dimension | 24" × 28" × 50" |
| Phase | Single Phase |
| Motor Type | Grinding Motor 0.75 HP |
| Suction Power | 250 CFM, 1 HP, 2800 RPM |
| Power Consumption | 1.3 kW |
| Vacuum Suction Power | 250 CFM, 1 HP, 2800 RPM |
| Country of Origin | Made in India |
| Availability | In Stock |
Vacuum Polishing Machine — Double Station
| Parameter | Value |
|---|---|
| Weight | 200 kg (Approx.) |
| Brand | JewelTech |
| Voltage | 230 V AC |
| Warranty | 1 year from invoice date, Ex-Factory |
| Dimension | 53.5" × 23" × 52" |
| Phase | Single Phase |
| Motor Type | Grinding Motor 0.75 HP |
| Suction Power | 250 CFM, 1 HP, 2800 RPM |
| Vacuum Suction Power | 2500 CFM, 1 HP, 2800 RPM |
| Power Consumption | 2.5 kW |
| Grinding Motor | 0.75 HP |
| Country of Origin | Made in India |
| Availability | In Stock |
Need consumables or filter sets? Contact for compatible bags, micron cloths, and spare parts.
